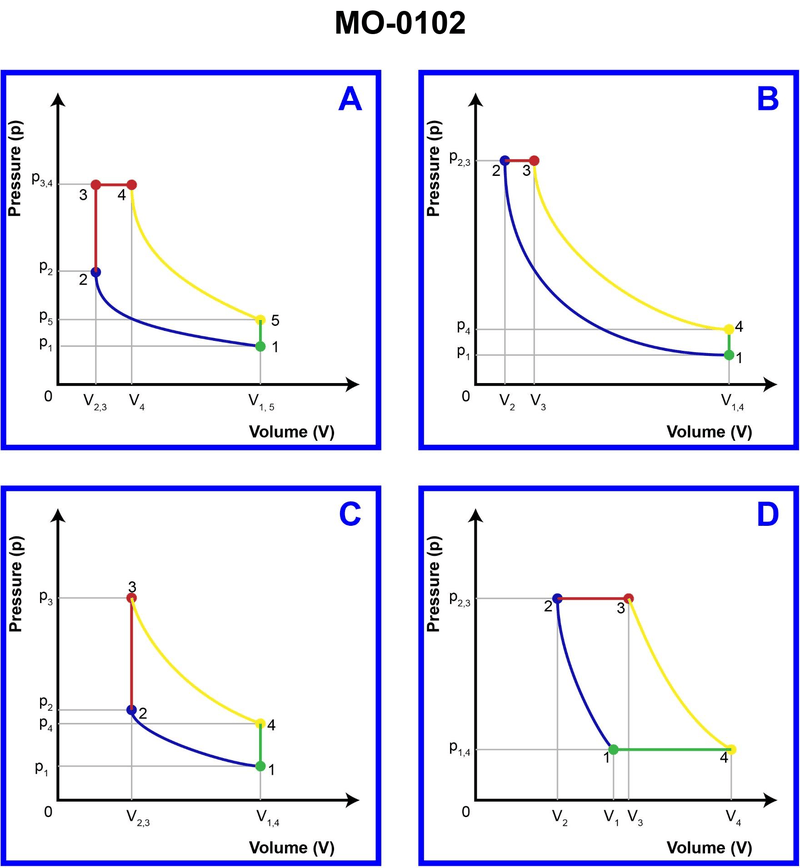

190. The pressure-volume diagrams illustrated are of four internal combustion engine cycles. Which one represents the theoretical diesel cycle

Choice B represents the theoretical diesel cycle because it depicts constant-pressure heat addition, a defining characteristic of the diesel cycle following isentropic compression and preceding isentropic expansion.
