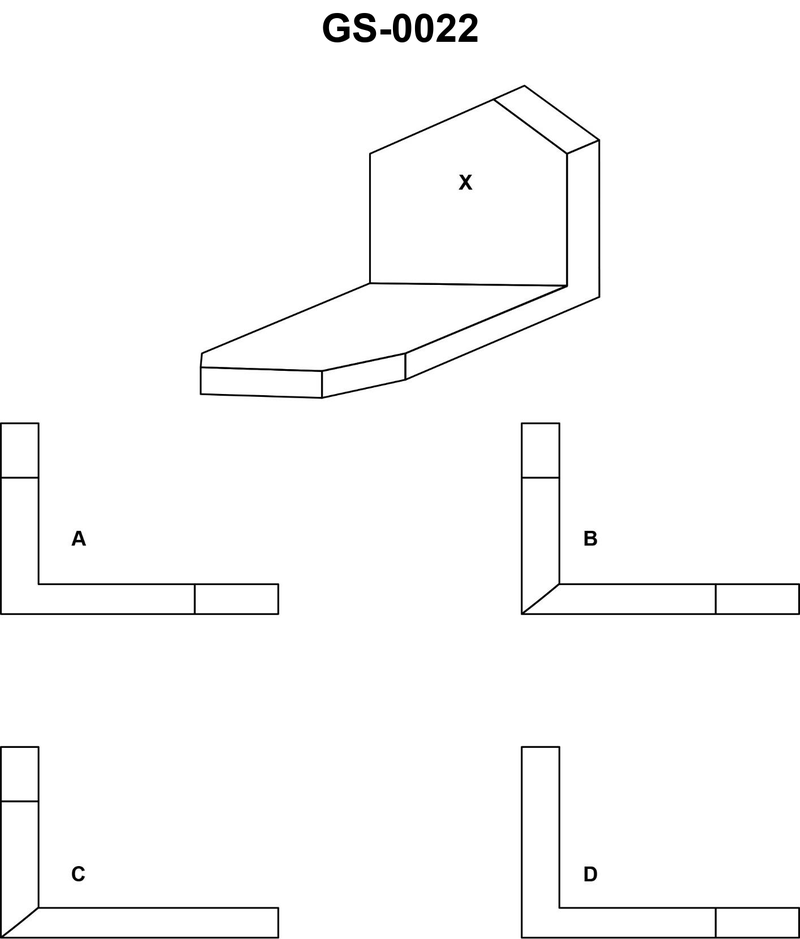

171. Which of the projections represents the left side view of the object «X» in the illustration
Choice A is correct; it accurately depicts the left side view as a simple vertical rectangle connected to a horizontal rectangle, without any additional bevels or gussets. The left side view presents the vertical web as a rectangle and the base plate as a horizontal extension, with the angled corner collapsing into a straight line. Options B, C, and D incorrectly include diagonal lines or omit essential details, failing to represent the object's true construction from the left side.
