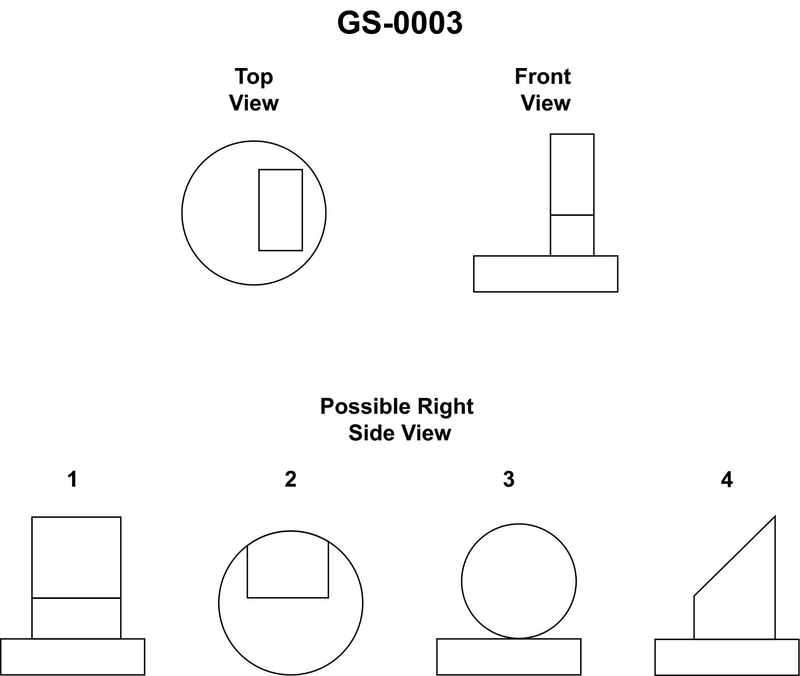

216. Of the views labeled «1», «2», «3», and «4», select the one that correctly represents the right side view of the unnumbered object in the illustration
View 4 accurately depicts the right side view because it reveals a fore-and-aft slope, which is not visible in the front or top views. This slope appears as a straight line in the front and top views but as a triangle in the right side view. The other views are inconsistent with the provided front and top views.
