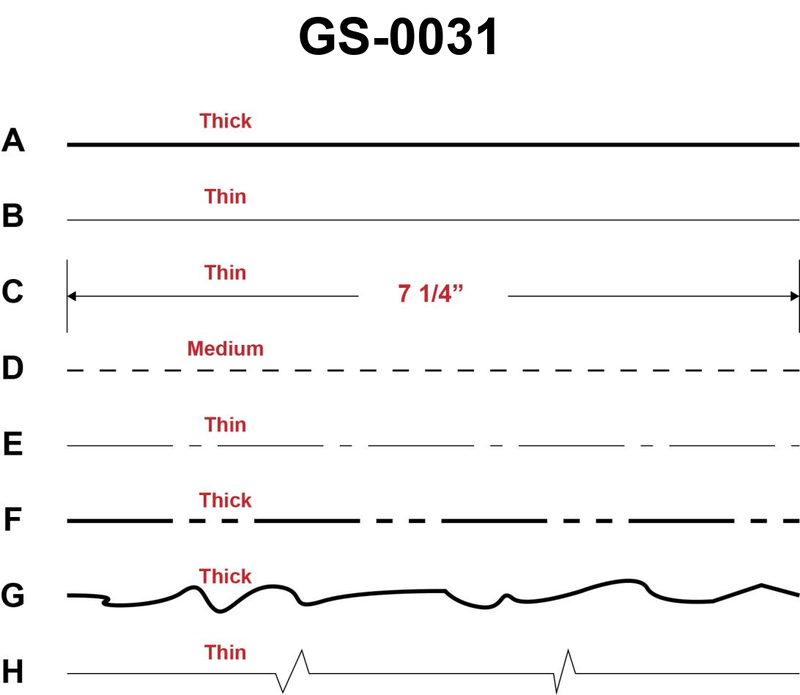

146. A 'centerline' depicted in a drawing or blueprint is represented by which of the figures shown in the illustration

A centerline is represented by a thin line of alternating long and short dashes, which corresponds to figure E. This distinguishes it from visible object lines (thick, solid), dimension lines (thin solid with arrowheads), and hidden lines (medium-weight, uniform dashes).
