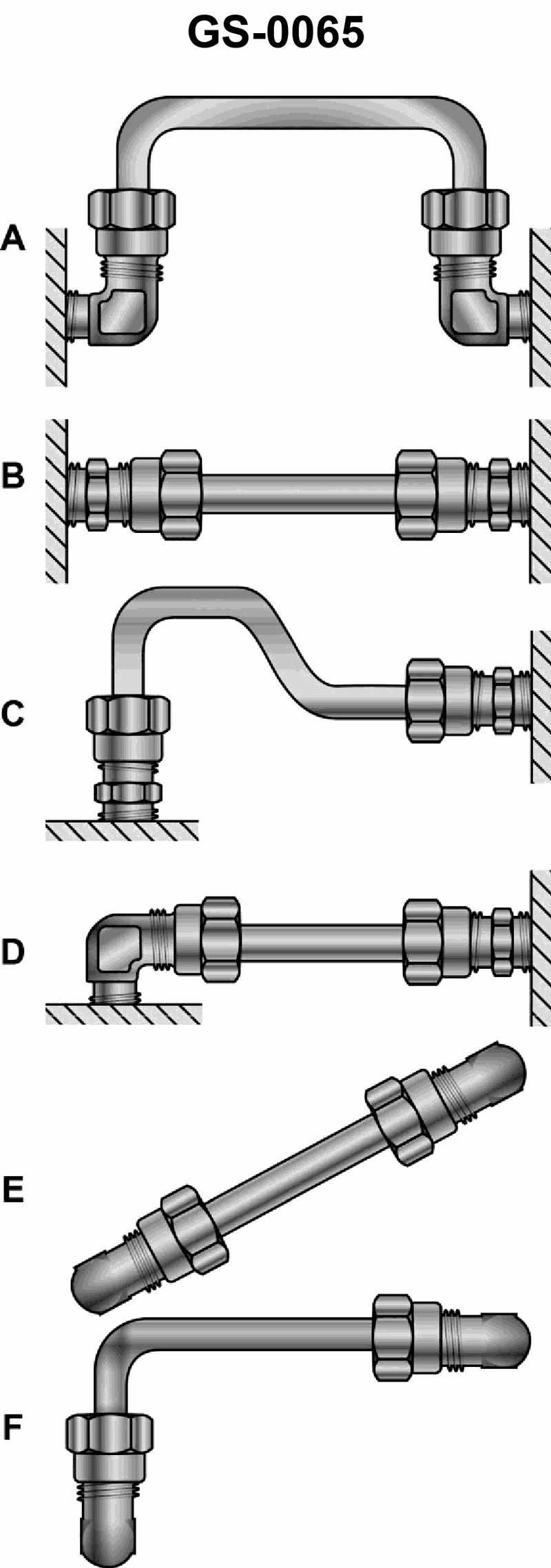

170. The hydraulic tubing installation shown as figure «D» is INCORRECT and will probably leak when in operation because the tubing __________

170. The hydraulic tubing installation shown as figure "D" is INCORRECT and will probably leak when in operation because the tubing __________

Will stretch and overstress the male threads on the fitting
And its fittings cannot be properly installed and tightened
Will contract in diameter and expand in length under pressure
Cannot flex at right angles to the pressure applied by the fluid because it is not properly twisted
