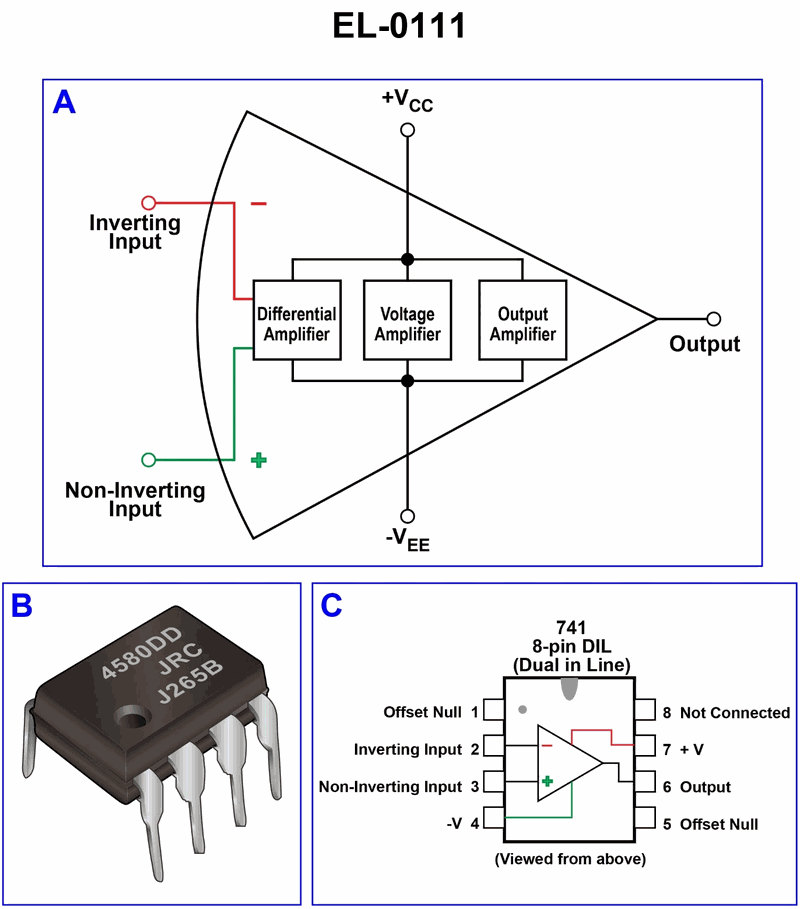

134. As shown in figures «A», «B», and «C» of the illustration, what is the purpose of the differential amplifier segment of the 741 operational amplifier
The differential amplifier in a 741 operational amplifier detects and amplifies the voltage difference between pins 2 and 3, the inverting and non-inverting inputs respectively.
