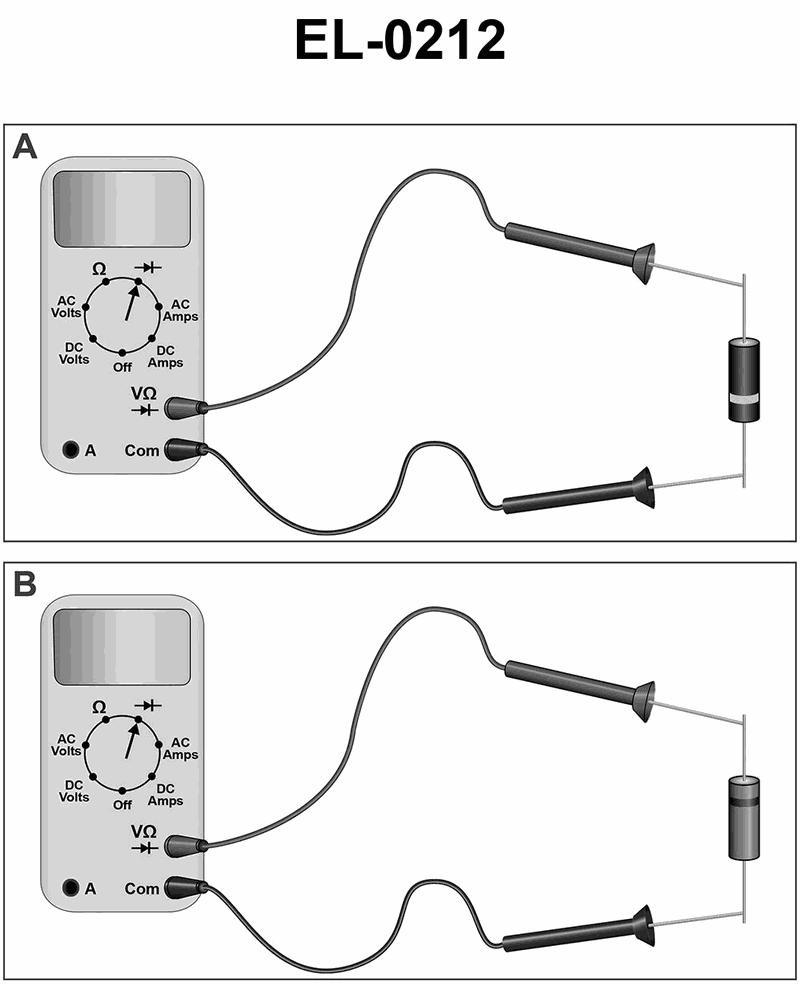

103. If a digital multimeter is setup as shown in figures «A» and «B» to test a silicon diode, what is the status of the diode if the screen displays 0.70 V when configured as in figure «A» and displays OL V when configured as in figure «B»
A reading of 0.70 V in one direction and OL in the opposite direction indicates a properly functioning silicon diode, as it demonstrates forward voltage drop and reverse blocking.
