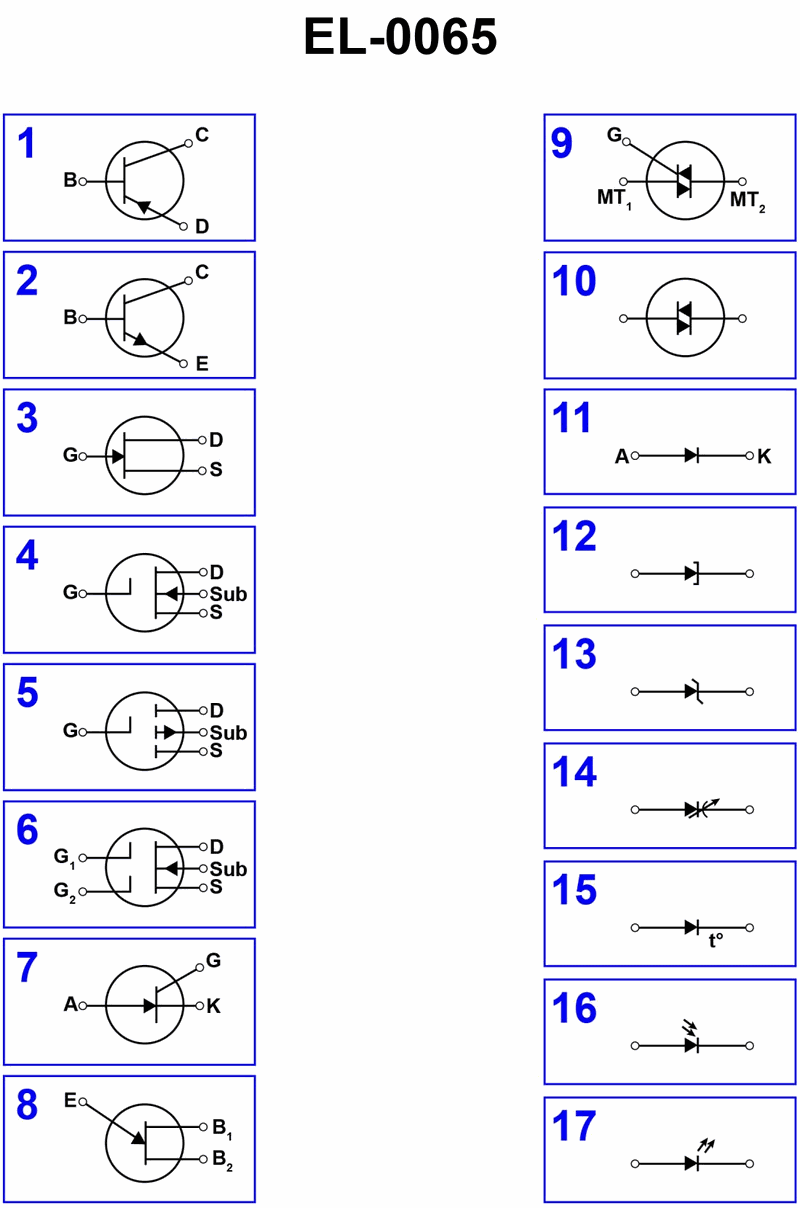

291. As shown in the illustration, which electrical symbol represents a PNP type bipolar junction transistor
Choice A is correct because the emitter arrow points inward, which is the defining characteristic of a PNP bipolar junction transistor.
