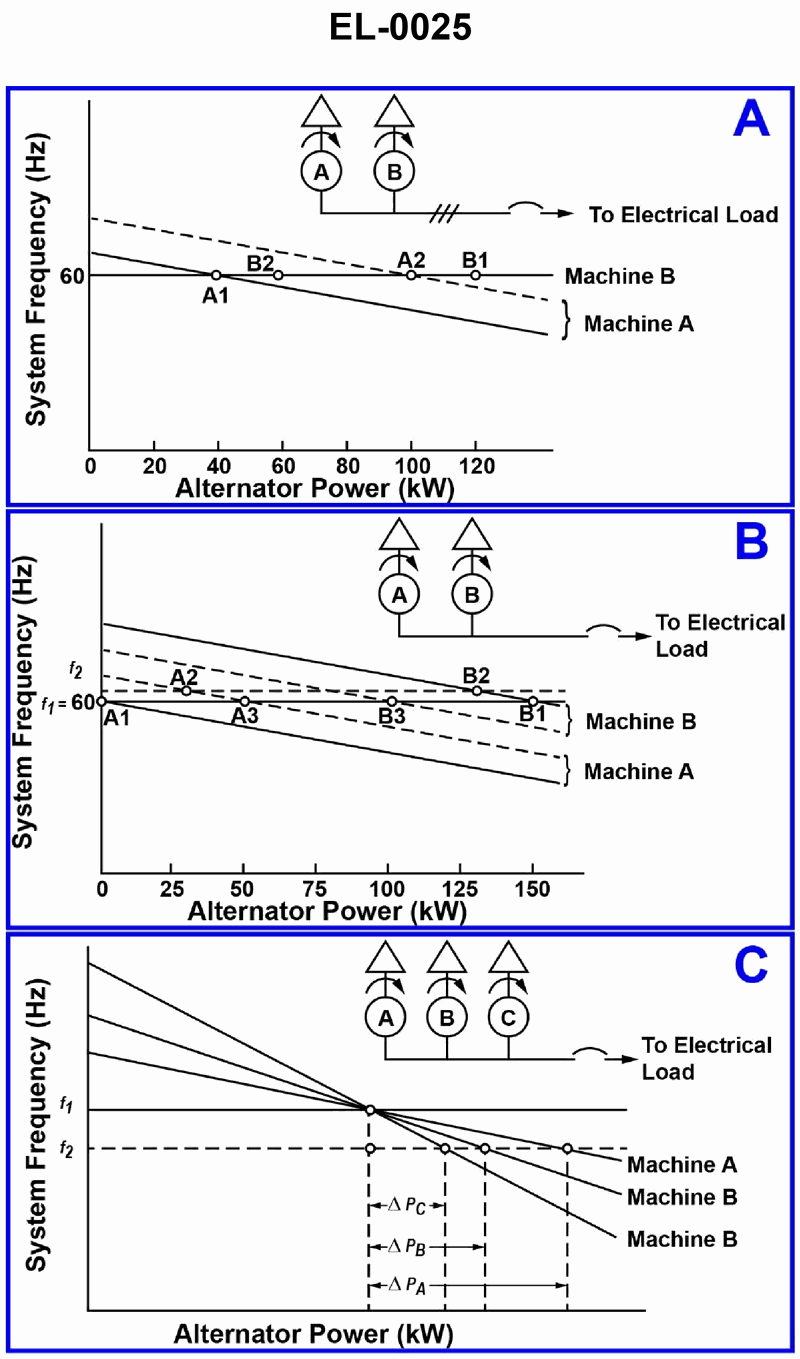

893. Figure «A» of the illustration represents a constant frequency system. At load condition «1» machine A has a 40 kW load and machine B has a 120 kW load as shown. If load is to be transferred manually to achieve load condition «2» with machine A having a load of 100 kW and machine B having a load of 60 kW, how is this accomplished

893. Figure "A" of the illustration represents a constant frequency system. At load condition "1" machine A has a 40 kW load and machine B has a 120 kW load as shown. If load is to be transferred manually to achieve load condition "2" with machine A having a load of 100 kW and machine B having a load of 60 kW, how is this accomplished
?
