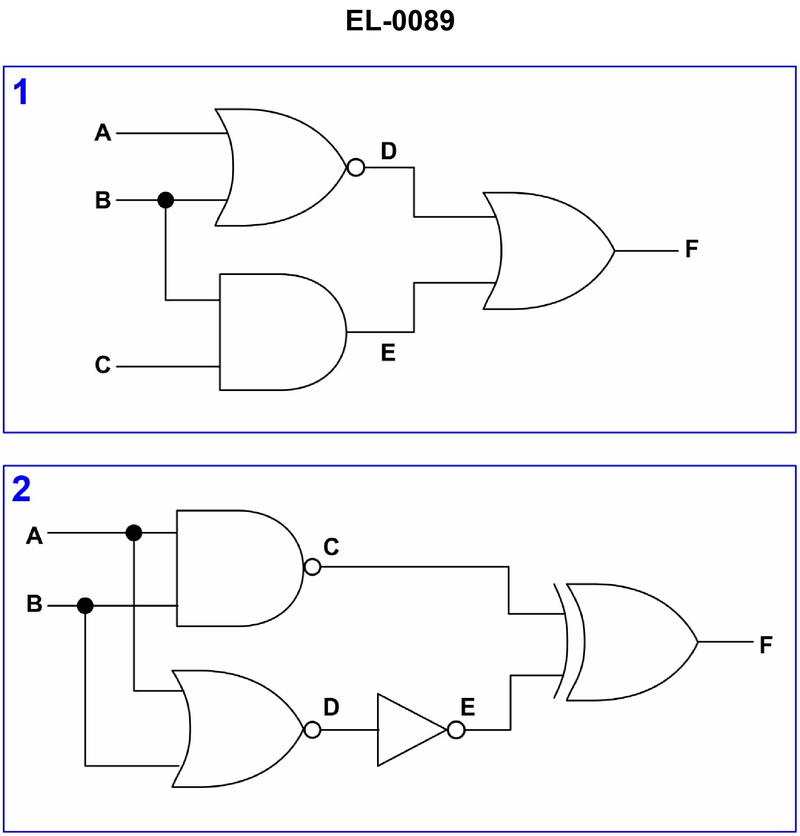

152. Referring to figure «2» of the illustration, if the inputs at A and B are both «0», what will be the outputs at «C», «D», «E», and «F» respectively
With A = 0 and B = 0, the NAND gate produces C = 1, the NOR gate produces D = 1, the inverter produces E = 0, and the OR gate produces F = 1.
