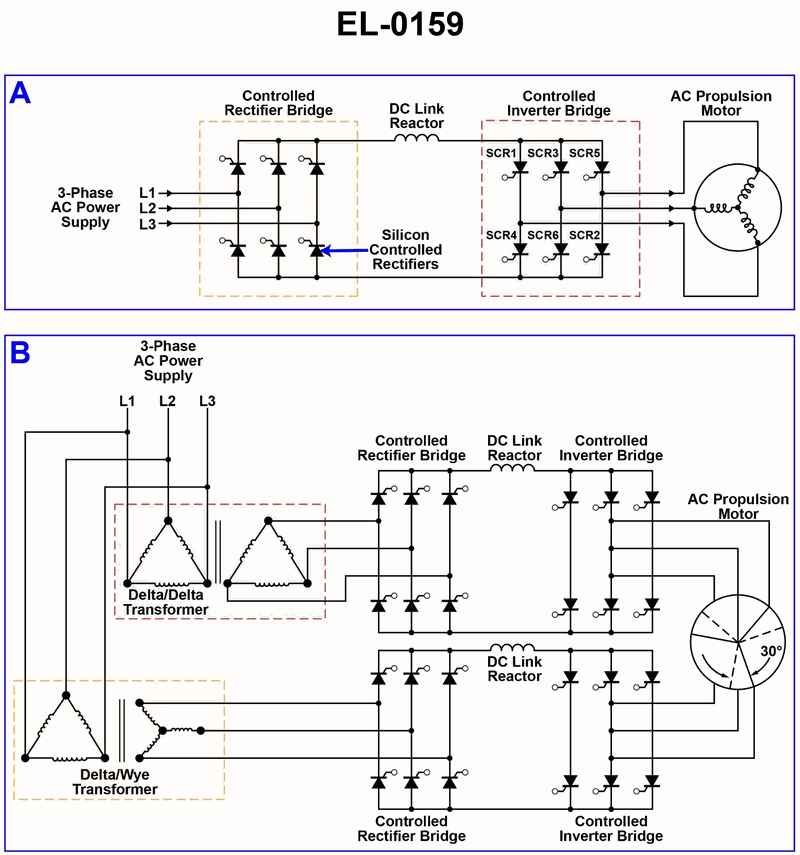

171. As shown in figure «A» of the illustration, the load-commutated inverter drive illustrated has how many pulses
The load-commutated inverter drive in figure A utilizes a single three-phase bridge configuration on both the rectifier and inverter sides, resulting in six pulses per cycle. This is determined by the formula p = m x q, where m is the number of phases (3) and q is the number of bridges per phase (2), yielding a total of 6 pulses.
