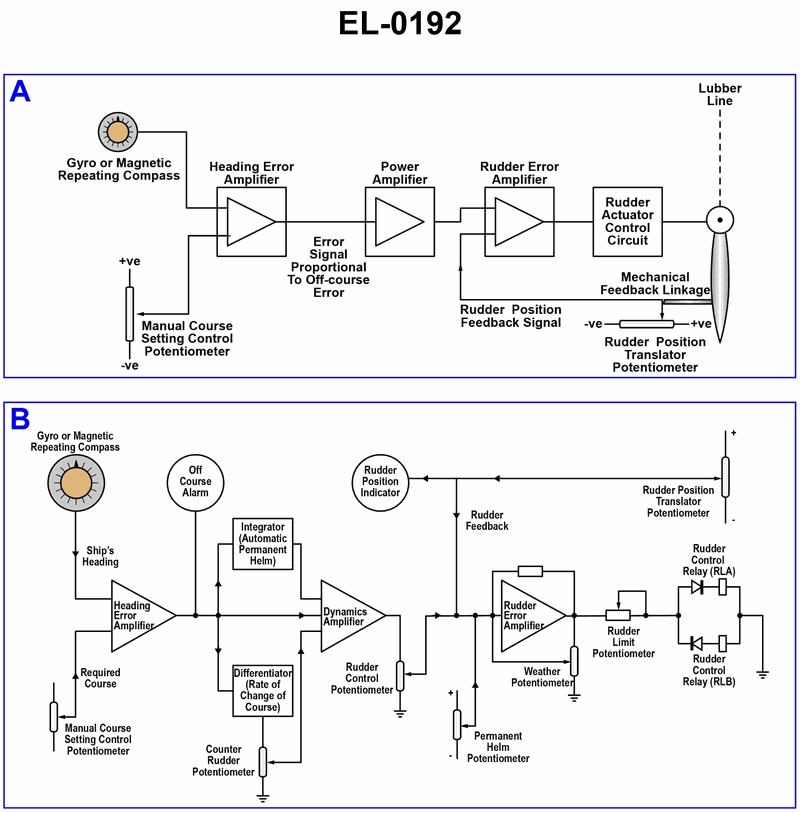

197. What type of electrical diagram for the steering control systems is shown in the illustration
The diagram illustrates major components as labeled blocks with signal flow arrows, which defines a functional block diagram. This type of diagram represents system functions and signal paths, unlike one-line diagrams (power distribution), wiring diagrams (detailed electrical connections), or pictorial drawings (realistic component layouts).
