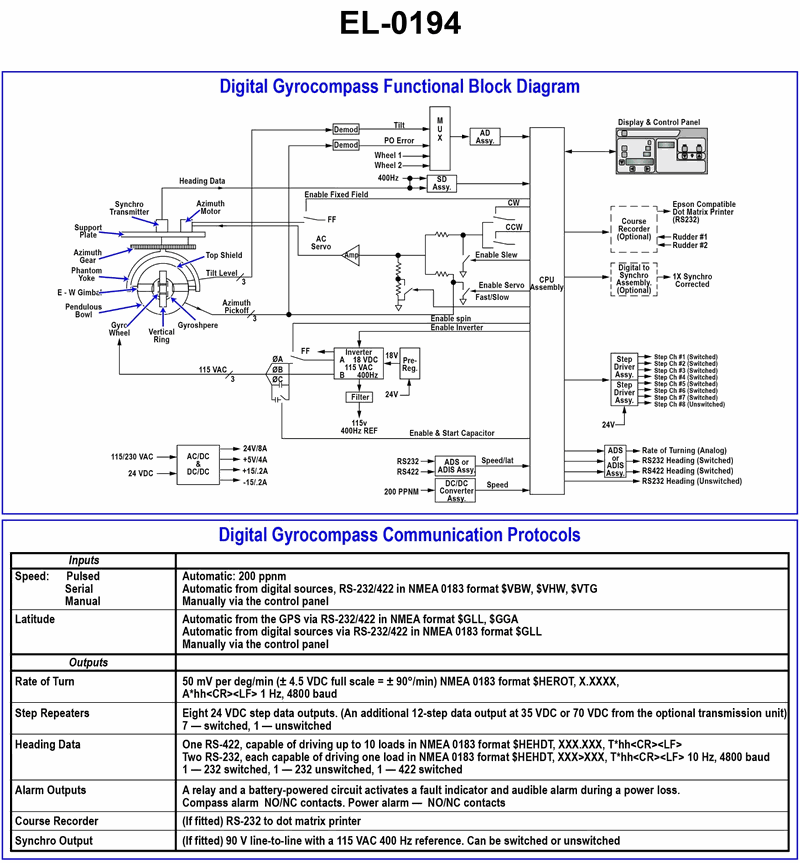

2526. As shown in the illustrated digital gyrocompass functional block diagram and the associated communication protocols table, what would the rate of turn signal voltage be if the rate of turn is 30 degrees per minute to port? Assume that the rate of turn to port signal voltage is negative in polarity and that the rate of turn to starboard signal voltage is positive in polarity

2526. As shown in the illustrated digital gyrocompass functional block diagram and the associated communication protocols table, what would the rate of turn signal voltage be if the rate of turn is 30 degrees per minute to port? Assume that the rate of turn to port signal voltage is negative in polarity and that the rate of turn to starboard signal voltage is positive in polarity
?
