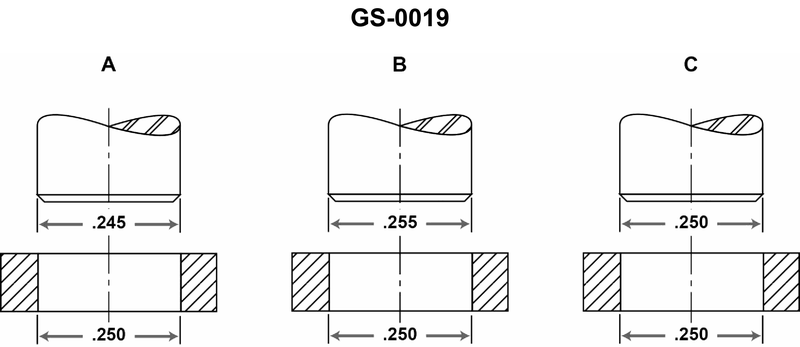

33. To make the pieces shown as «A» in the illustration a locational interference fit, what will be necessary

the piece with the hole must be heated until the inside diameter of the hole is .245 inches +/-.001
do nothing, this is a close sliding fit but there is no way to make it a locational interference fit and a close sliding fit is an acceptable alternative
an interference is not possible unless you turn down a new shaft with a diameter of .250 inches +.001/-.000
hone the shaft until the roughness value is 50 micro inches (.005 inch clearance)
