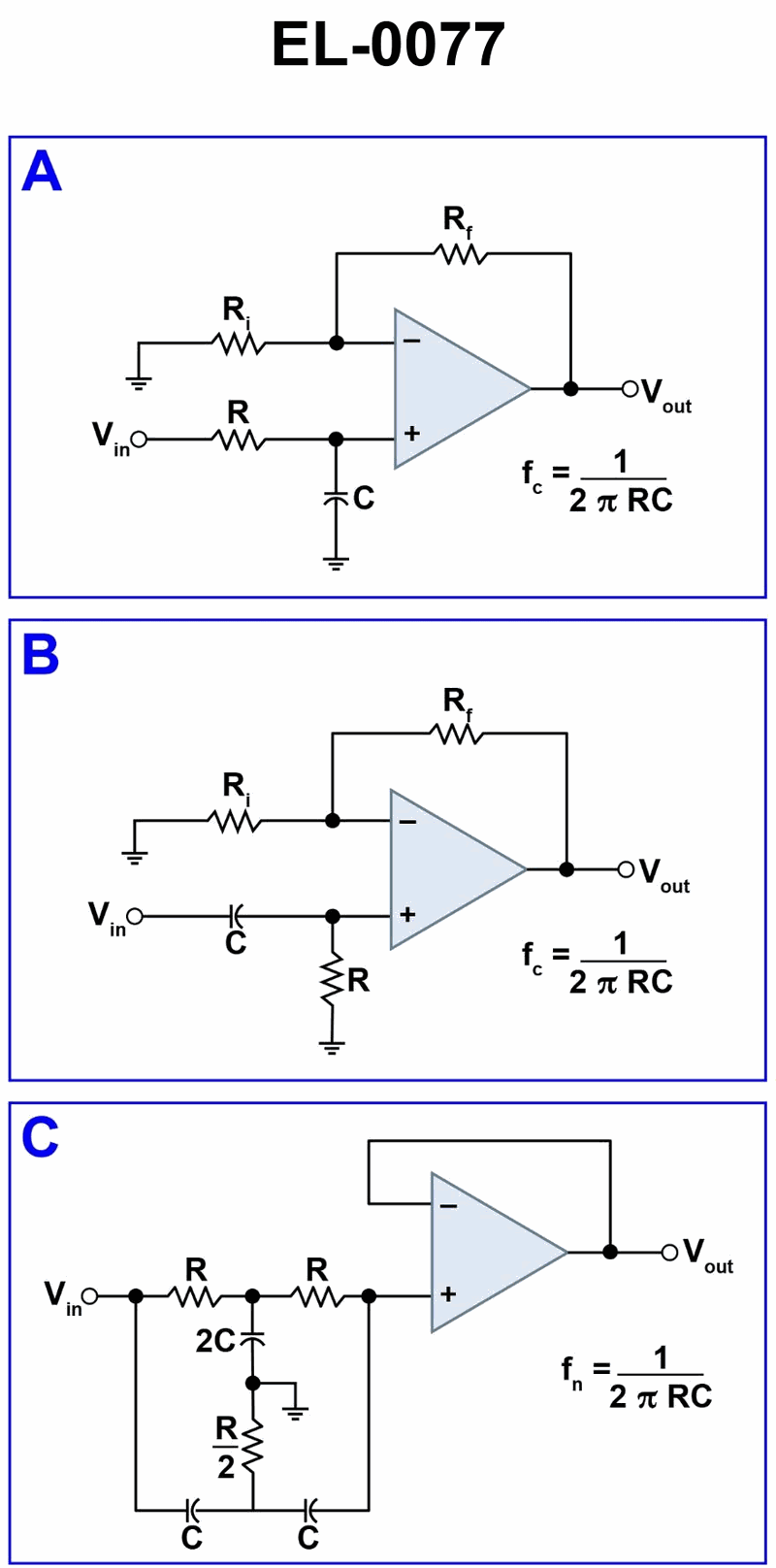

340. In referring to figure «A» of the illustration, what type of active filter circuit is shown
The circuit configuration, with a resistor in series followed by a capacitor to ground, is characteristic of a low-pass filter, which allows low frequencies to pass while attenuating high frequencies.
