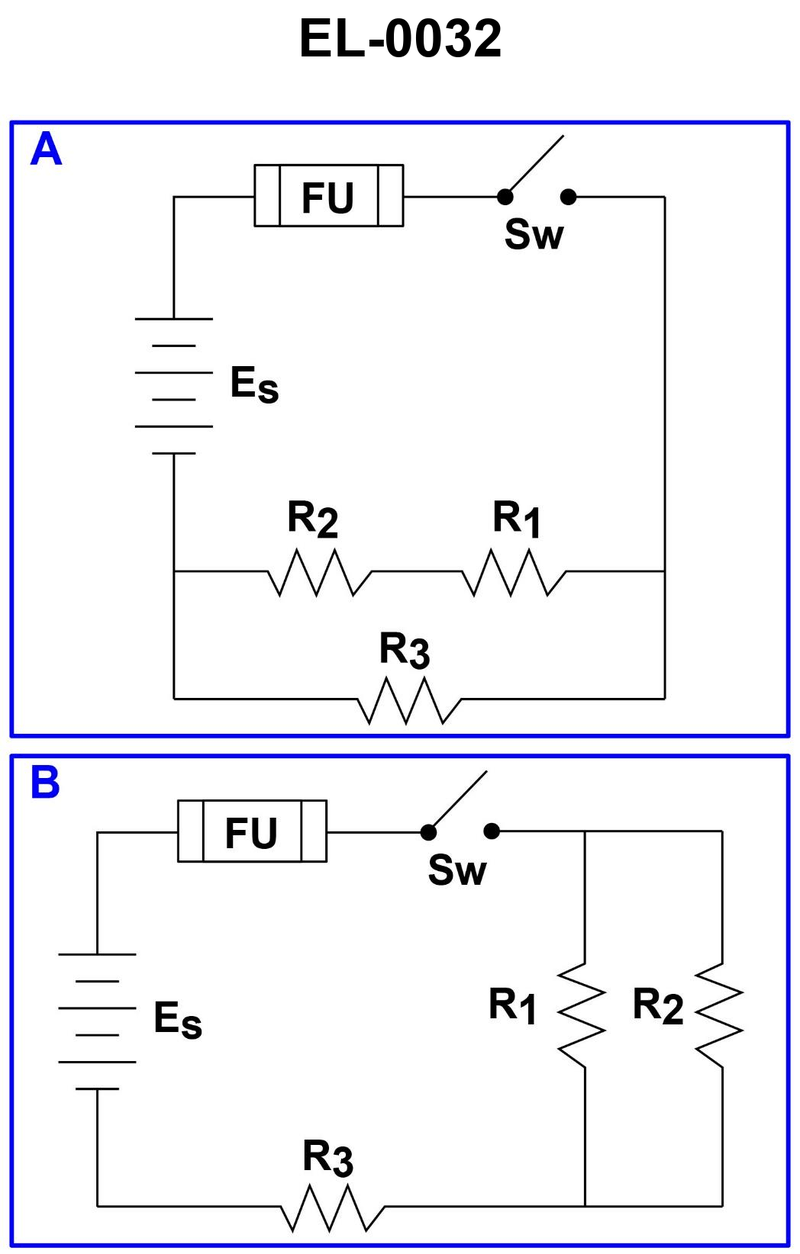

587. What would be the total power consumed by the circuit as shown in figure «A» of the illustration if the source voltage is 12 volts, the resistance for R1 is 470 ohms, the resistance of R2 is 330 ohms, and the resistance of R3 is 800 ohms
The equivalent resistance is 400 ohms, resulting in a total power consumption of 360 milliwatts.
