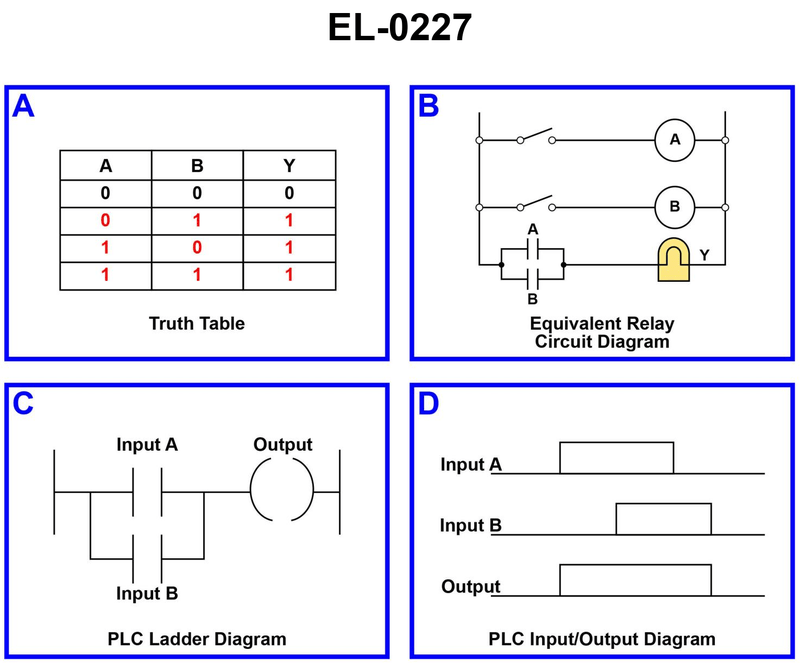

112. As shown in all four diagrams included in the illustration, what type of logic circuit is represented
The output is ON when either input is ON, consistent with the behavior of an OR gate. The truth table, relay diagram, PLC ladder diagram, and timing diagram all demonstrate this characteristic.
