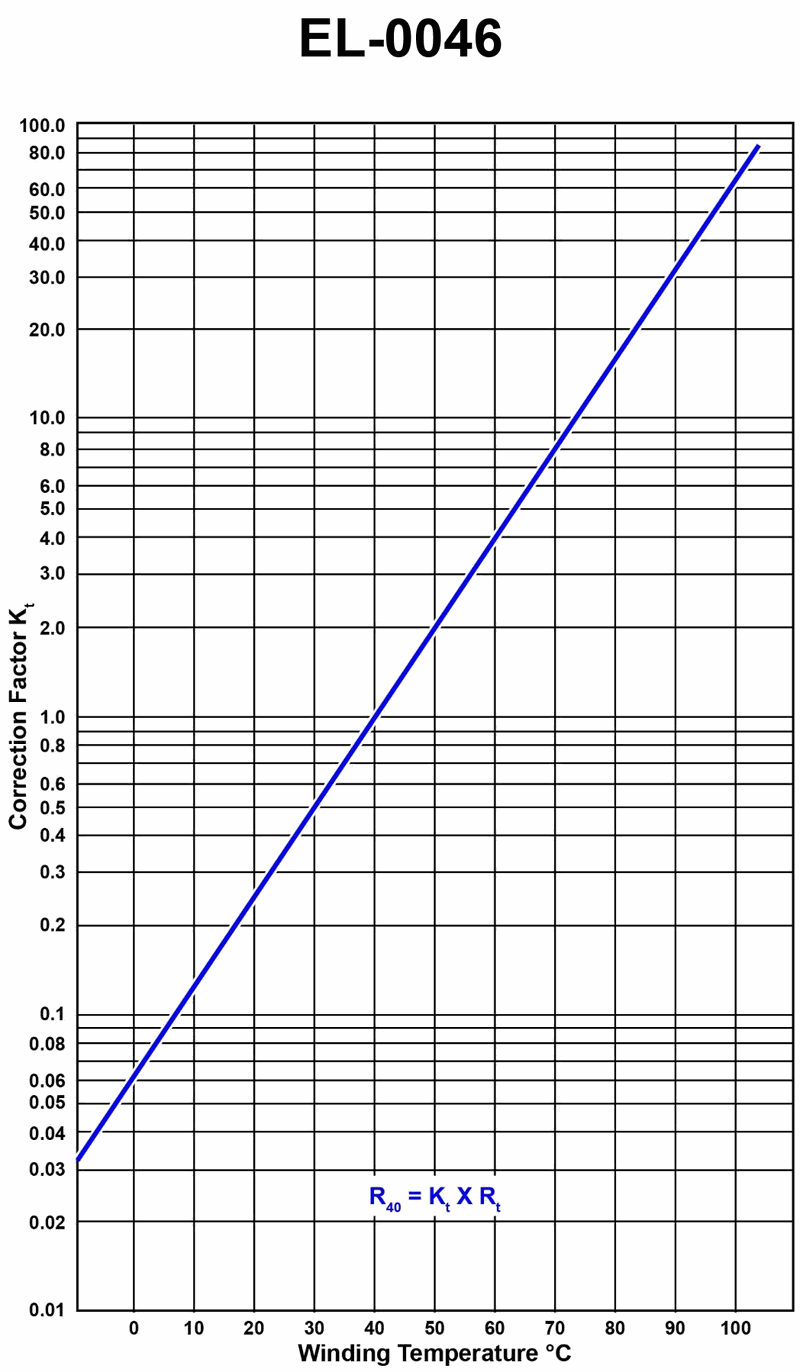

208. Using the temperature correction factor for the winding insulation temperature graph shown in the illustration, what would be the correction factor and the corrected temperature to 40 degrees C for a motor with an insulation resistance of 4 megohms measured at 50 degrees C
The temperature correction factor is 2, resulting in a corrected resistance of 8 megohms at 40 degrees C, as determined by multiplying the measured resistance by the correction factor from the provided graph.
