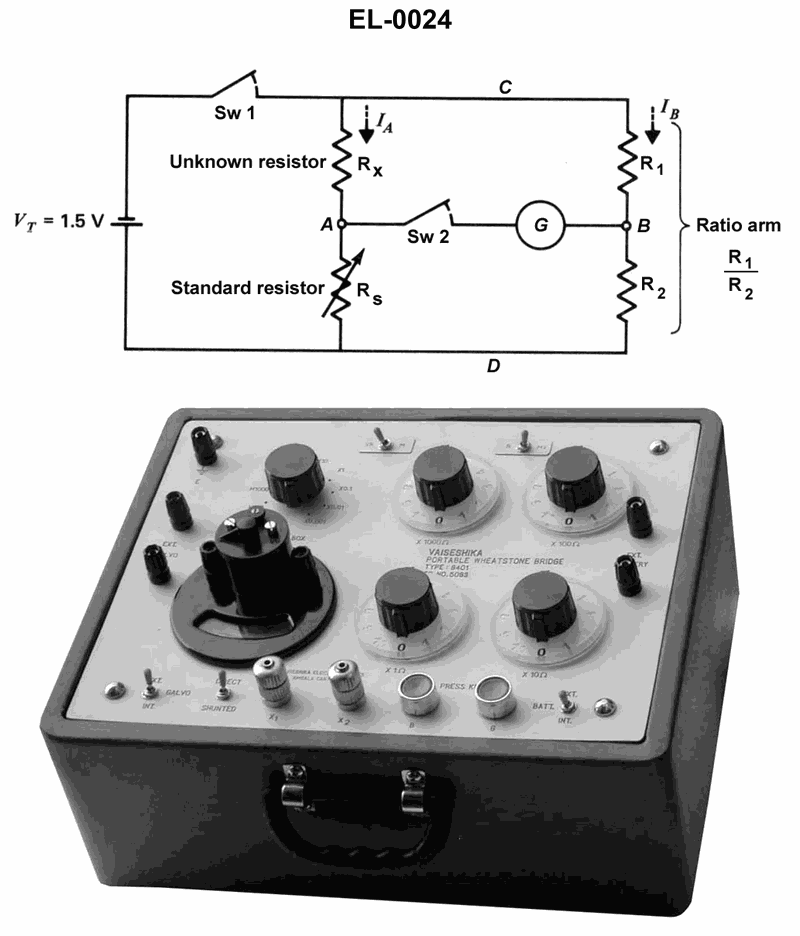

31. What is the circuit shown in the illustration used to measure
The circuit is a Wheatstone bridge, used to measure an unknown resistance by balancing it against known resistors. The bridge balances when the ratio of the resistors on each arm is equal, allowing calculation of the unknown resistance using a standard resistor and ratio arms. Therefore, the circuit measures resistance.
