- Q654 - Electrical, Electronic, & Control Engineering

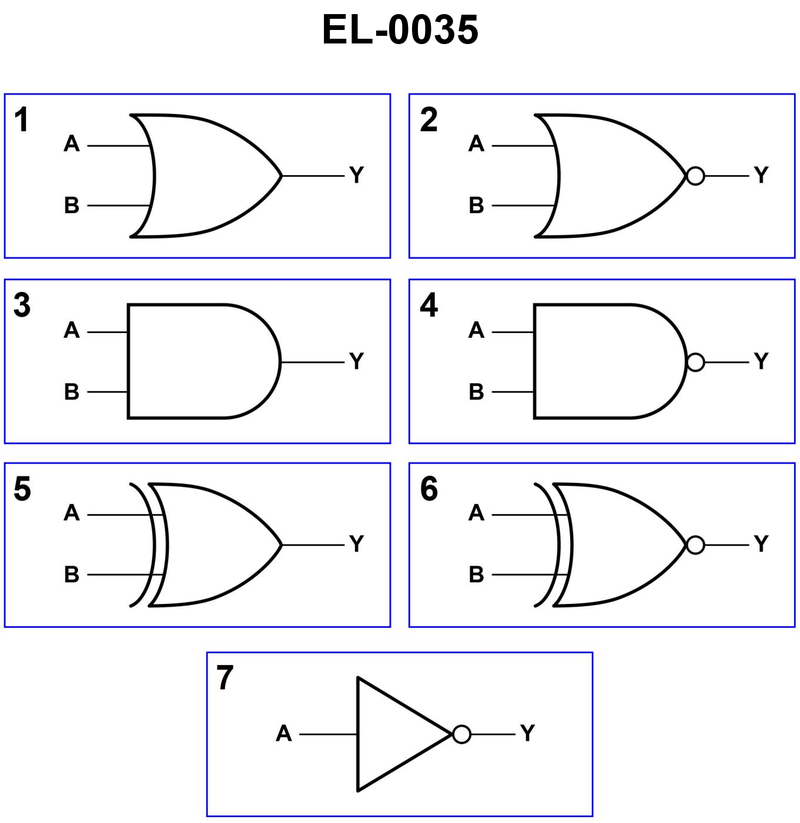

170. Referring to figure «3» of the illustration, what type of logic gate is symbolized
The symbol in figure 3 represents an AND gate because it has a flat input side and a rounded output side without an inversion bubble, distinguishing it from OR, XOR, and NOR gate symbols.
